Parking Guidance System
World’s Best Quality
- Summary of the indoor parking guide system
-
Ultrasound frequency guide system is a management system for each parking space, providing parking lot space information so that clients can park fast.
Each parking spot has an ultrasound lamp installed, detecting space availability with ultrasound to manage parking spaces
-
- Summary of the outdoor parking guide system
-
AI deep learning-based camera sensor is used to provide parking lot space information so that clients can park fast.
AI deep-learning camera sensors can recognize vehicle plates to track the location of the vehicles.
-

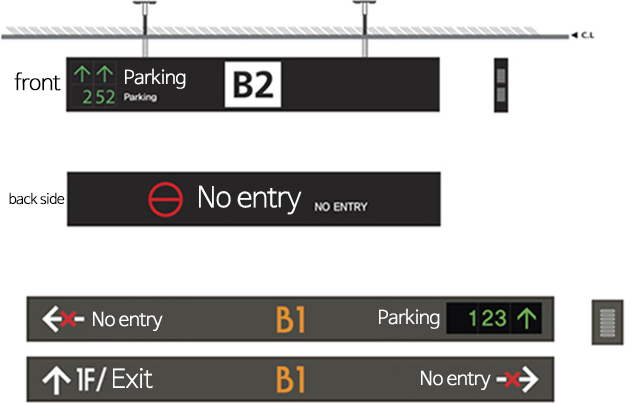

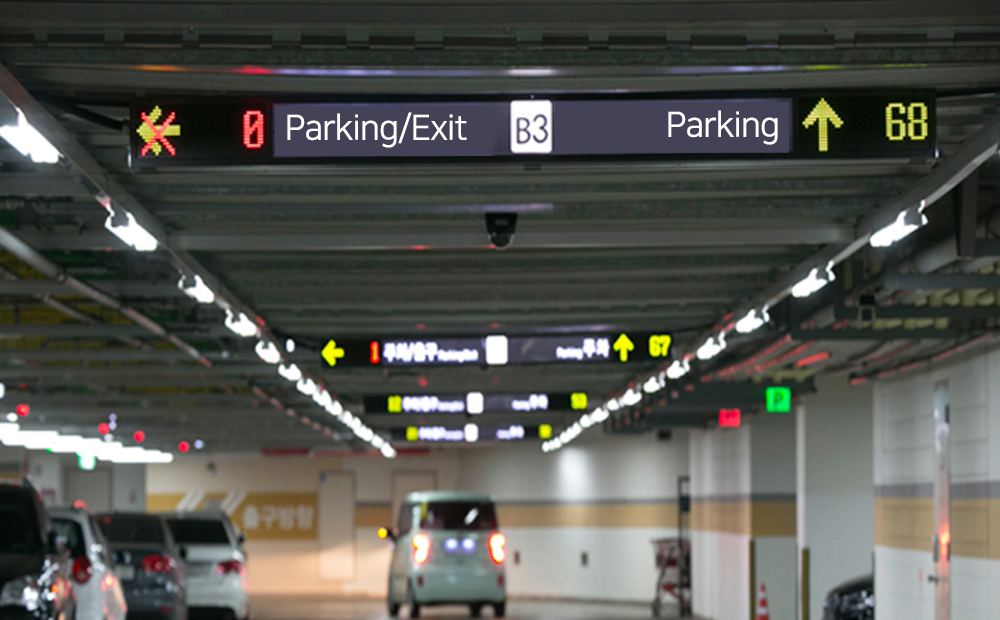

- Floor / Block Signboard
-
The aluminum profile Floor / Block Signboard is our original technology and is protected as patented technology.
-
Installed at the entrance of the floor or region the driver is entering,
guiding them with real-time parking information. -
- Provides available parking spot information of the floor/region in real-time
- Displays remaining spaces as number and texts(Plenty, Congested, Full)
- When it is full, the red cross(‘X’) is displayed on top of the driving direction arrow(>)
- Alternatively displays the number of parking spaces for people with disabilities
Product Specifications
| Power Consumption | AC 220V |
|---|---|
| Communication Method | RS-485 |
| Installation Location | Entrance of the floor/region(Suspension type) |
| Display | LED Module |
| Light | High-intensity LED Backlight, Light guide panel |
| Outer frame material | aluminum 1.6T |
ALCOREA Inc.’s advanced technology maximizes the energy efficiency
to provide customized light guide panels the client wants.
We provide appropriate frame types for the project for performance and reliability,
and we can manufacture panels with a size of 3,000mm x 2,000mm at max.
Product Specifications
| Power Consumption | AC 220V |
|---|---|
| Communication Method | RS-485, TCP, IP |
| Installation Location | Entrance of the floor/region(Suspension type) |
| Display | LED Module |
| Advertising display | LCD Panel, LED Panel, Photo panel |
| Light | High-intensity LED Backlight, Light Guide Panel |
| Outer frame material | Aluminum 1.6T |
